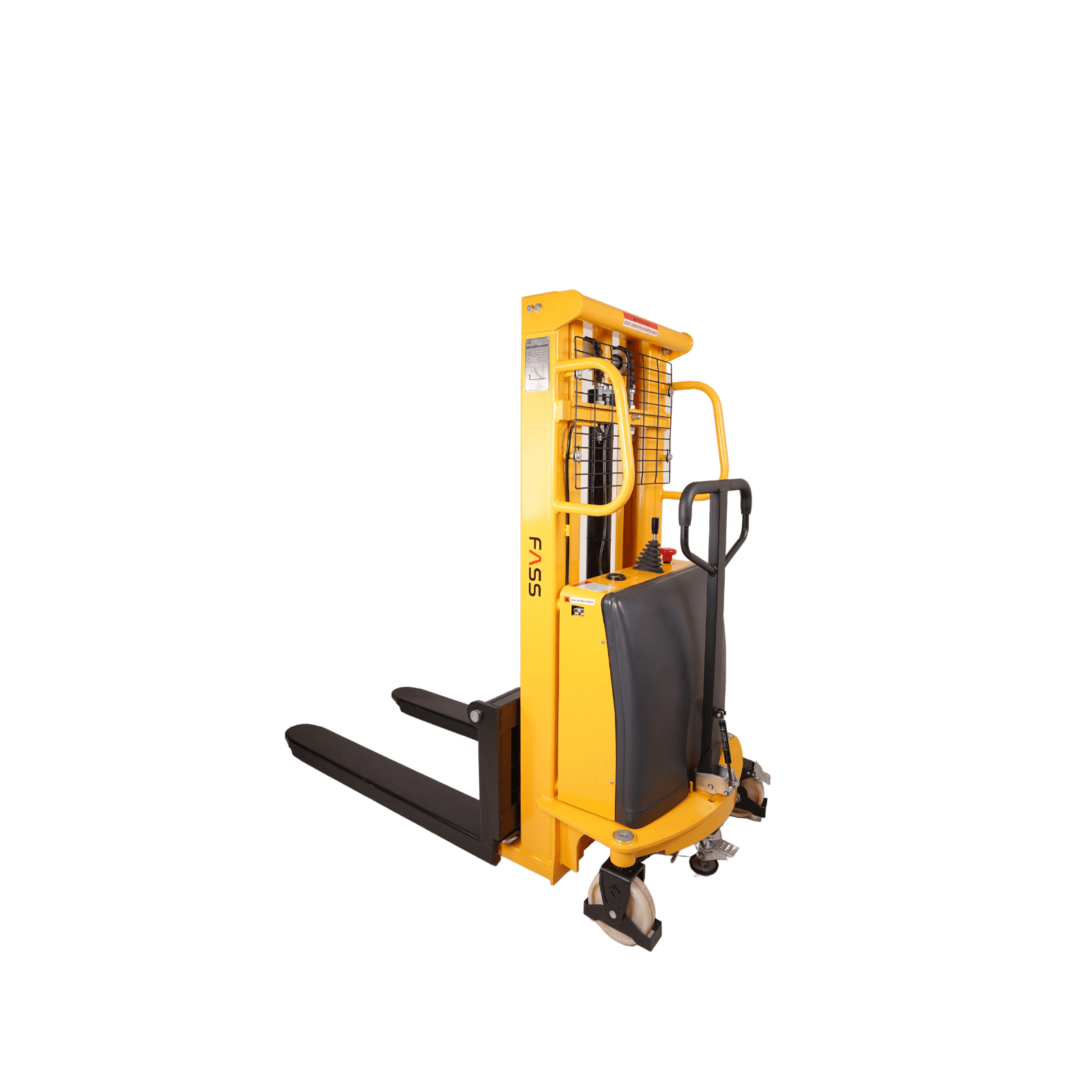

Semi Electric Stacker

The FASS Semi Electric Stacker is ideal for lifting and stacking tasks in warehouses, combining electric lifting with manual movement for efficient material handling.

Technical Data

Capacity (Kg)2000

Load Center Distance (mm)450

Promotion ModeElectric

Operation ModeWalkie

Material ScienceNylon

QTY of Steering / Bearing Wheels2/2

Wheelbase (mm)1182

Bearing Wheel Size (mm)Φ80 × 60

Steering Wheel Dimensions (mm)Φ180 × 50

Min. Height of Fork from Ground (mm)90

Max. Height of Fork after Lifting (mm)1600 / 2000

Fork Outside Width (mm)340–710

Inside Width of Fork (mm)20–390

Working Length of Fork (mm)1150

Single Side Fork Size (mm)160 × 60

Overall Length (mm)1810

Overall Width (mm)770

Overall Height (mm)2190 / 1630

Maximum Lifting Stroke (mm)1510 / 1910

Max. Lifting Speed (mm/s) (Full Load/No Load)"40–50 / 85–95

Max. Descent Speed (mm/s) (Full Load/No Load)90–110 / 85–95

Lifting Motor (kW)1.6

Battery Capacity (V/Ah)12V / 120Ah

Battery Weight (Kg)36

Net Weight (Kg)430 / 470

Features

● Special rolling process “C” steel portal frame – solid and safe..

● Integrated hydraulic power unit for reliable performance..

● Ergonomic body design ensures flexible and labor-saving operation..

● Connecting rod-type steering system for effortless maneuvering..

● Foot brake for safe and easy control.

● Customizable specifications: support leg width and fork type..

● Optional fork types: forged fork, covered fork, and fixed fork..
