Manual Stacker

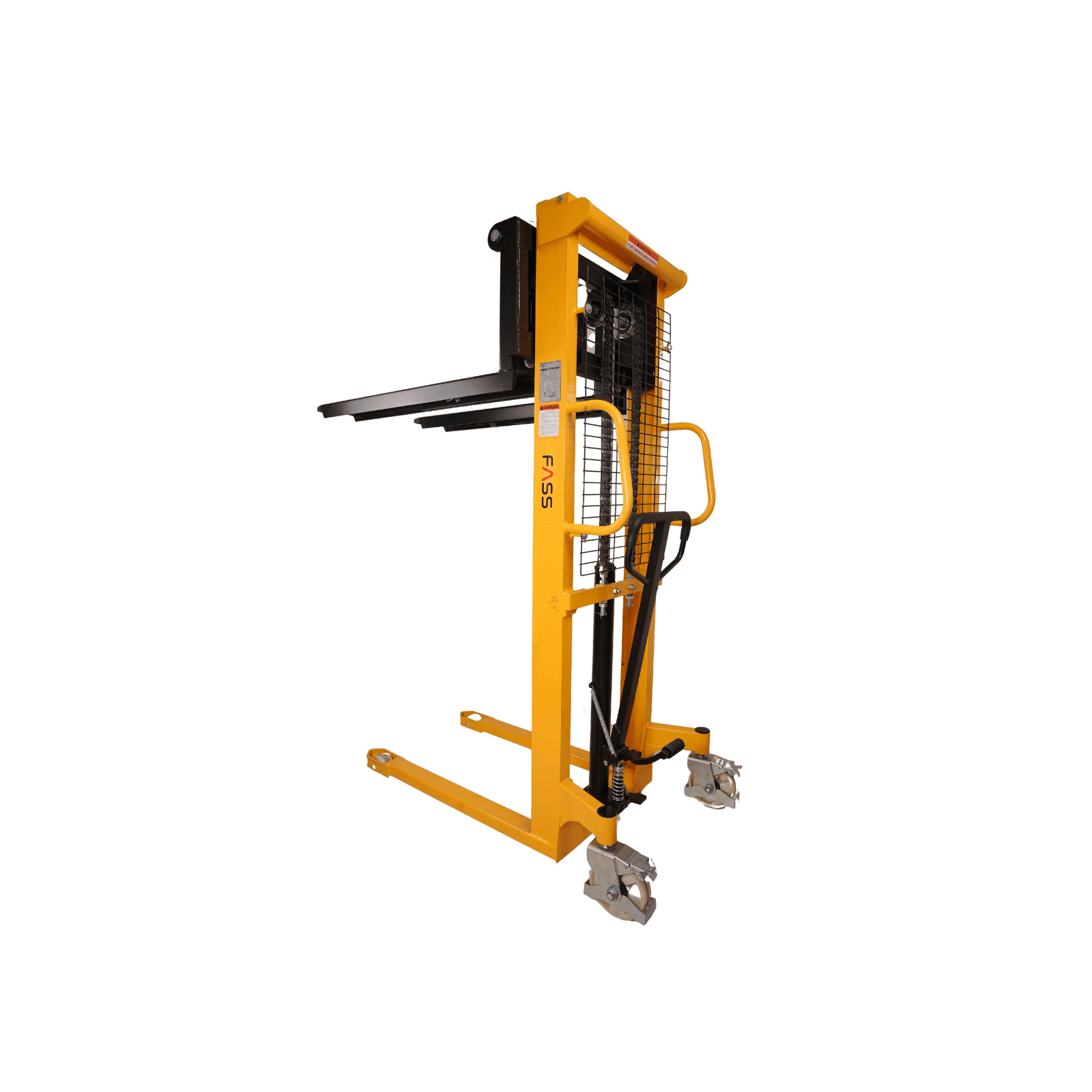

The FASS Manual Stacker SYG-2016 is a robust, manual lifting solution designed for handling heavy pallets and materials in warehouses, factories, and workshops. This stacker is ideal for environments where electric stackers are impractical, offering a cost-effective and efficient solution for material handling needs.
Technical Data
Capacity (Kg)2000
Load center distance (mm)400
Promotion modeManual / Pedal
Operation modeWalk
MaterialNylon
Steering/Bearing wheels2/2
Wheelbase (mm)1140
Bearing wheel size (mm)Φ80×60
Steering wheel dimensions (mm)Φ180×50
Min. fork height (mm)90
Max. fork height (mm)1600
Fork outside width (mm)240–940
Inside fork width (mm)0–700
Fork working length (mm)900 (Forging)
Single side fork size (mm)120/30
Overall length (mm)1430
Overall width (mm)1000
Overall height (mm)2085
Channel width (tray 1000×1200) (mm)1734/1725/1780
Minimum turning radius (mm)1400
Times of forklifting to max pump pressure (full load, times)≤110
Descent speed (mm/s)Foot control
Net weight (Kg)275
Features
● Dual manual/pedal lift for easy operation.
● Heavy-duty steel frame for durability.
● Adjustable fork width for various pallet sizes.
● Compact design ideal for narrow spaces.
● Smooth-rolling nylon wheels.
● Reinforced mast for safe, stable lifting.
● Low-maintenance hydraulic system.
● Foot control for precise descent.
